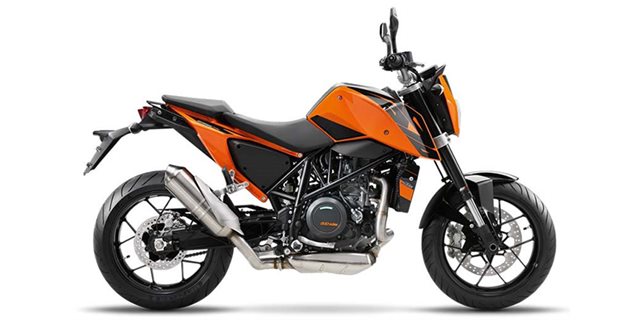

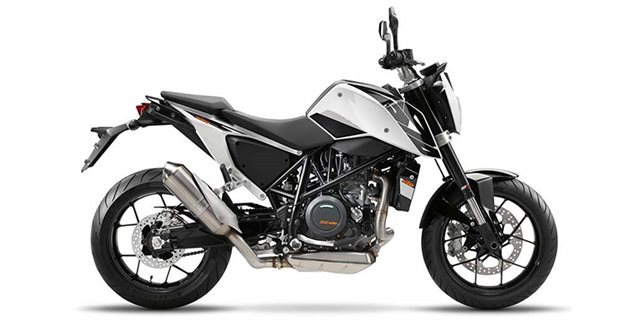

2016 KTM 690 Duke

Stock #U85184

26 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2016 KTM Duke 690 . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2016 KTM 690 Duke
  • VIN:
    VBKLDV40XGM785184
  • Model Number:
    690DUKE
  • Mileage:
    9,464 miles
  • Stock Number:
    U85184
  • Title:
    Clear
  • Location:
    Ken & Joe's Honda Kawasaki KTM
  • Warranty:
    As Is

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    12.6
  • Front Brake Diameter (mm):
    320
  • Front Brake Type:
    Disc
  • Rear Brake Diameter (in):
    9.5
  • Rear Brake Diameter (mm):
    240
  • Rear Brake Type:
    Disc

ENGINE

  • Bore (in):
    4.13
  • Bore (mm):
    105
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    12.6
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    690
  • Displacement (ci):
    42.1
  • Engine Brand Name:
    LC4
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    73
  • Horsepower (kW):
    54
  • Starter:
    Electric
  • Stroke (in):
    3.15
  • Stroke (mm):
    80
  • Torque (Ft Lbs):
    54.6
  • Torque (Nm):
    74
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Chain Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    32.9
  • Seat Height (mm):
    835
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP
  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    5.3
  • Front Travel (mm):
    135
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    5.3
  • Rear Travel (mm):
    135

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    148.5
  • Dry Weight (lbs):
    327.4
  • Engine Displacement to Weight (cc):
    2.11
  • Fuel Capacity (gal):
    3.7
  • Fuel Capacity (l):
    14
  • Ground Clearance (in):
    7.6
  • Ground Clearance (mm):
    192
  • Wheelbase (in):
    57.7
  • Wheelbase (mm):
    1466

TRANSMISSION

  • Final Drive Ratio:
    2.19
  • Gear Ratio (1):
    2.5
  • Gear Ratio (2):
    1.75
  • Gear Ratio (3):
    1.33
  • Gear Ratio (4):
    1.1
  • Gear Ratio (5):
    0.96
  • Gear Ratio (6):
    0.87
  • Number Of Speeds:
    6
  • Overdrive:
    Yes
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Pilot Power 120/70 R17 58W
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    W
  • Front Tire Width:
    120
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Michelin® Pilot Power 160/60 R17 69W
  • Rear Tire Aspect Ratio:
    60
  • Rear Tire Speed Rating:
    W
  • Rear Tire Width:
    160
  • Rear Wheel Diameter:
    17
  • Tire Brand:
    Michelin®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
